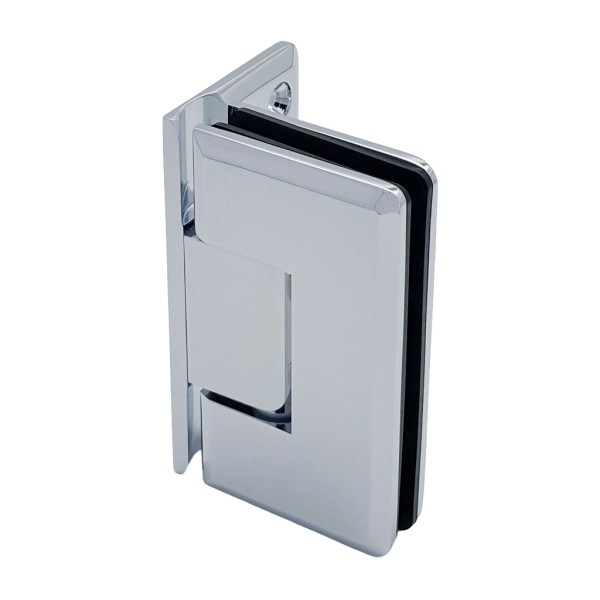

CC0L344, Adjustable, Wall Mount Offset Back Plate Shower Door Hinge

CC0L344, Adjustable, Wall Mount Offset Back Plate Shower Door Hinge

{{ product.price_format }}
{{ product.origin_price_format }}
QUICK SHIPPING* Usually ships in 1 business day
Stock:
Brand: CEL
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Pound

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}
–
+

Shop with Confidence

30 Days Easy Return. We are one of the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Glass Fabrication Required YES
MATERIAL Brass
Edge Profile Beveled
5 Degree Pre-Set NO
Mounting Type Wall/Ceiling Mount
Glazing Thickness (inches) 3/8" to 1/2"
Back Plate Offset
Adjustable YES
Glass to Glass/Wall Angle (Degree) 90°

CC0L344, Adjustable, Wall Mount Offset Back Plate Shower Door Hinge



Height (inches) 4"
Edge Profile Beveled
Material Brass
Adjustable YES
Self-Centering YES
Max. Door Width for 1/2 Glass (inches) 32"
Max. Door Width for 3/8 Glass(inches) 34"
Width (inches) 2 5/16"
Back Plate Offset
Mounting Type (Degree) Wall Mount (90°)
Glazing Thickness (Inches) 3/8" to 1/2"
5 Degree Pre-Set NO
Max. Door Weight for 2 Hinge (lbs) 100 LBS
Max. Door Weight for 3 Hinge (lbs) 130 LBS



SPECIFICATIONS:

Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

Included: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.

Adjustable to Any Angle Up to 90 Degrees without Removing Door

Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side

Care & Cleaning Guidelines:

Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.

CC0L344.pdf
