GDH96BL-CRL

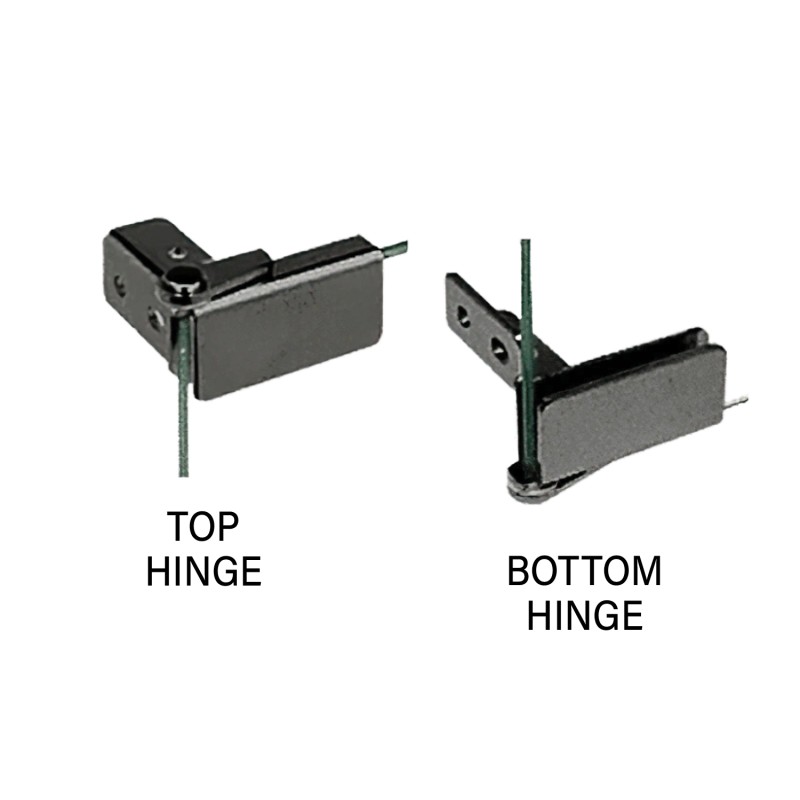

GDH96, CRL Surface Mount Glass Door Hinge

• Glass Thickness: 3/16" to 1/4"
• Height: 25/32
• Material: Brass
• Maximum Door Width: 18"
• Pack Quantity: 2
• Width: 1-37/64
• Precision Machined and Quality Finished Hinge Designed for 3/16" (5 mm) Glass
• Designed for 3/16" and 1/4" (5 and 6 mm) Glass
• Use Monolithic Tempered Glass

SPECIFICATIONS:
Glass Height: Opening Plus 5/16" (7.9 mm)
Single Door Width: Opening Plus 3/4" (19 mm)
Double Door Width: Opening Divided by 2, Plus 11/32" (8.7 mm). Maximum Door Dimensions 18" (457 mm) W x 39" (991 mm) H
